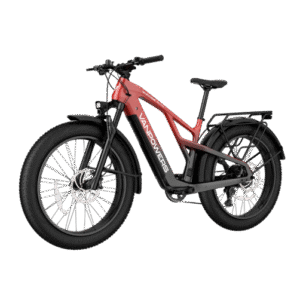

Vanpowers GrandTeton Pro – 750W Hub Motor | 149 KM Range | 26” Fat Tires | All-Terrain E-Bike

$2,999.00

Key Features

  • 750W Brushless Hub Motor: Delivers robust power with 85 Nm of torque, ensuring smooth acceleration and the ability to tackle steep inclines effortlessly.

  • 149 KM Range: Powered by a 48V 14.7Ah (705.6Wh) removable lithium-ion battery, offering an extensive range suitable for long-distance adventures.

  • 26” x 4” Fat Tires: Provides exceptional traction and stability across diverse terrains, including sand, snow, and rocky paths.

  • Suspension Fork with Lockout: Features a 120 mm travel suspension fork that absorbs shocks, enhancing comfort on rugged trails.

  • Integrated Lighting System: Equipped with high beam/low beam front lights and an embedded tail light with automatic sensing for enhanced visibility and safety.



Product Overview

The Vanpowers GrandTeton Pro is engineered for riders seeking a versatile and powerful all-terrain e-bike capable of handling both urban commutes and off-road escapades. Its robust 750W hub motor, combined with a torque sensor, delivers responsive and efficient power, making steep climbs and challenging trails more accessible. The substantial 149 km range provided by the high-capacity battery ensures that riders can embark on extended journeys without frequent recharging. Designed with a focus on comfort and durability, the GrandTeton Pro features a suspension fork with lockout and fat tires that collectively offer a smooth and stable ride across various surfaces. Integrated lighting enhances safety, making this e-bike a reliable companion for both day and night adventures.

Vanpowers GrandTeton Pro comes in 1 size to suit most adults.

One size: 165~190cm(5’4″ – 6’3″)

Location

Part type

One Size

A

Seat Post Length

460

B

Frame Length

648

C

Bottom Bracket Drop

60

D

Head Tube Length

140

E

Seat Tube Angle

73.5

F

Head Tube Angle

68

G

Rear Wheel To Center

490

H

Front Wheel To Center

760

I

Wheelbase

1244

J

Reach

450

K

Stack

668

L

Fork Length

540

M

Fork Offset

58

N

Trail

85

O

Standover Height

700

P

User Body Height (Range)

1650-1850

The GrandTeton Pro features a 750W (900W peak) brushless rear hub motor paired with a 48V 14.7Ah Samsung lithium-ion battery, offering a maximum range of 149 km on pedal assist. Its torque sensor enhances ride responsiveness by matching your pedaling effort with motor output for smooth power delivery. The RockShox-style front suspension fork with 120 mm travel helps absorb trail shocks, while a durable 6061 aluminum alloy frame ensures a strong yet lightweight build that supports up to 181 kg of rider and cargo weight.

For complete control, the bike includes a Shimano CUES 9-speed drivetrain, Tektro 4-piston hydraulic disc brakes with 203 mm rotors, and an adaptive TFT-LCD display with Bluetooth functionality. Integrated high/low beam headlights and an auto-sensing rear brake light boost safety and visibility in all conditions. Additional highlights include CST 26” x 4.0” fat tires, alloy fenders, rear rack (up to 54 kg load), ergonomic handlebars, and a Selle Royal saddle—all purpose-built for long-distance trail riding and all-day comfort.


ASSIST SPEED
45 km/h (28 mph)
RANGE
150 km (93 miles)
WEIGHT
34.8 kg (76.7 lbs)
MAX LOAD
181 kg (400 lbs)
MOTOR
750W Brushless Hub Motor, 900W Peak, 85Nm Torque
SENSOR
Torque Sensor
BATTERY
48V 14.7Ah 705.6Wh Removable Lithium-ion, Samsung Cells, BMS, IP67 Waterproof
CHARGER
54.6V / 3A Fast Charger

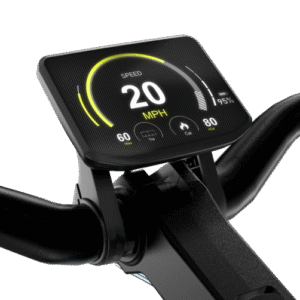

DISPLAY
1.9″ Color TFT-LCD, Adaptive Brightness, Bluetooth
THROTTLE
Left-hand Thumb Throttle
FRONT LIGHT
High Beam / Low Beam
TAIL LIGHT
Constant Illumination / Brake Flashing
APP
VanLife App
SMART SYSTEM
No (TBox not included)
FRAME
6061 Aluminum Alloy – Strength exceeds 150% of ISO 4210
FRONT FORK
Suspension Fork with Lockout, 120mm Travel
REAR DERAILLEUR
Shimano® CUES 4000, 1×9 Speed
CRANKSET
42T Chainring, 170mm Crank
CASSETTE
Shimano® 9-Speed, 11-41T
CHAIN
Shimano® CN-LG500
BRAKES
Tektro® 4-Piston Hydraulic Disc, 203mm Rotors
RIMS
Aluminum Alloy, Double Wall
FRONT HUB
15x150mm Boost Thru-Axle
SPOKES
36×2 Stainless Steel Spokes
TIRES
CST® 26″x4.0″, 60 TPI
TUBES
CST® 26″x4.0″ Tubes
HANDLEBAR
Zoom® Aluminum Alloy, 720mm, 30mm Rise, 9° Back Sweep
STEM
Aluminum Alloy, 47.5mm Length, -10° Angle
SEAT POST
Zoom® Aluminum Alloy, 30.9mm x 320mm, Quick Release Clamp
SADDLE
Selle Royal® A069H Saddle
FENDERS
Aluminum Alloy Fenders
REAR RACK
Aluminum Alloy, Max Load 54 kg (120 lbs)
GRIPS
DDK® DGT-2200/B, 135mm
KICKSTAND
Aluminum Alloy
